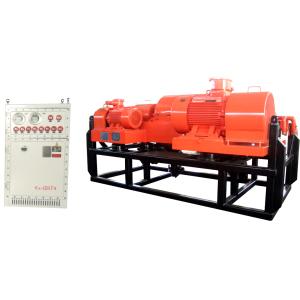

23RPM 28RPM Pulley Adjustable Centrifuge Mud Purification Drilling Centrifuge

Name: 23RPM 28RPM Pulley Adjustable Centrifuge Mud Purification Drilling Centrifuge
Brand: XBSY
Price: 1 USD

China 23RPM 28RPM Pulley Adjustable Centrifuge Mud Purification Drilling Centrifuge wholesale

Place of Origin : Sichuan，China

Brand Name : XBSY

Certification : USE 18000,USE14000，EAC，CE，ISO9000

MOQ : 1

Packaging Details : Ply Wood Box,iron box

Delivery Time : 1-2 months

Payment Terms : TT

Supply Ability : 1000

Price : Price Negotiable

Model : LW630 × 1260-N

Drive Type : Power Frequency

Drum Inner Diameter (mm) : 630

Drum Working Length (mm) : 1260

Maximum Drum Speed (r/min) : 1800

Drum Working Speed (r/min) : 1400 / 1600

Pusher Differential Speed (r/min) : 23 / 28

Contact Now

Pulley-Adjustable Centrifuge: 23/28 RPM Differential for Mud Purification

The LW630×1260-N power frequency centrifuge delivers efficient removal of 2–5µm fine solids and 6–10µm harmful phases in conventional drilling operations. With dual drum speed options (1,400 or 1,600 RPM) adjustable via pulley configuration, it generates centrifugal forces up to 967 Fr, ensuring optimal separation without complex controls. The 55kW main motor supports 80 m³/h throughput while minimizing barite loss. Dimensions: 3520×1880×1800 mm; weight: 4,800 kg.Engineered for cost efficiency, this centrifuge uses fixed-speed motors and mechanical pulleys instead of VFD systems. Operators switch between 1,400 RPM (740 Fr) and 1,600 RPM (967 Fr) by adjusting drive pulleys—ideal for stable mud density conditions. Reduces upfront costs by 25% and energy consumption by 15% compared to variable-frequency models.

23RPM 28RPM Pulley Adjustable Centrifuge Mud Purification Drilling Centrifuge

Features
Constant Drum Speed - Can be changed by changing the drive pulley.
Easy to Operate and Maintain- Can be matched with different drum speeds and processing capacities according to the size of the drilling rig and actual demand.
Cost-saving - The centrifuge of choice for conventional drilling mud treatment.

Model	LW630 × 1260-N
Drive Type	Power Frequency
Drum Inner Diameter (mm)	630
Drum Working Length (mm)	1260
Maximum Drum Speed (r/min)	1800
Drum Working Speed (r/min)	1400 / 1600
Fr	740 / 967
Pusher Differential Speed (r/min)	23 / 28
Max. Capacity (m3/h) (Clearwater)	80
Rated Power (kW) (Main Motor)	55 kW
Rated Speed (r/min) (Main Motor)	1480 r / min
Rated Power (kW) (Auxiliary Motor)	15 kW
Rated Speed (r/min) (Auxiliary Motor)	970 r/min
Feeding Pump Model	Screw Pumps or Centrifugal Pumps
L * W * H (mm)	3520 × 1880 × 1800
Weight (kg)	4800
